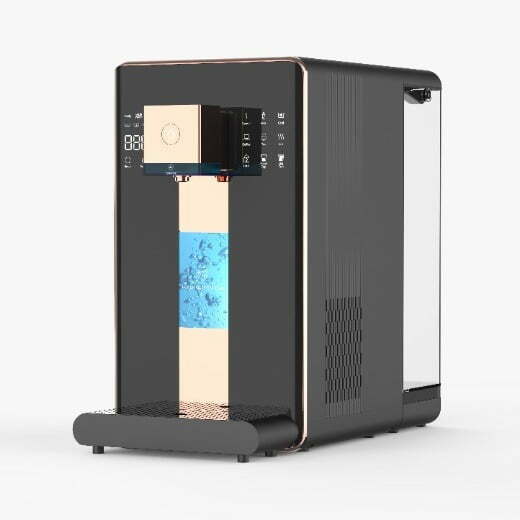

Aquavolta® Osmoveda H2 | Table-top reverse osmosis system with hot & cold water function (containing hydrogen) without connection
Electro-osmosis was invented in Germany and France in the 1920s. Mineral salts in water carry different electrical charges and can be removed from the water by direct current using membranes or fluid technology. But the time and energy required for this turned out to be too high.
Modern reverse osmosis filtration works again using water pressure and with multiple, increasingly narrow physical and chemical filters such as activated carbon and ceramic. The “osmosis water” (permeate) pressed through the narrowest pores of a membrane is almost completely demineralized and free of pollutants. At the same time, wastewater is created, with which minerals and pollutants are removed in concentrated form. The ratio of osmosis water to wastewater for Aquavolta® is Osmoveda H2 six to five.
Aquavolta® Osmoveda® H2 | Reverse osmosis system with hot & cold water function including H2 enrichment
Tap reverse osmosis water, either cold, warm or hot, and always with hydrogen (H2)
- 3-stage reverse osmosis filtration technology without installation on the water pipe
- PEM/SPE cell for hydrogen production and H2 water enrichment
- 3-second thick film rapid heating technology. Temperatures freely selectable. The hot water functions have a child safety lock to protect against scalding.
- Cooling technology for water cooling
- Water tank with storage and wastewater chamber
- Internal H2 storage tank with H2 enrichment
- UV disinfection unit at the water outlet to prevent re-germation (retrograde germination) via the outlet
Aquavolta® Osmoveda H2 | Hot & cold water reverse osmosis system with tank including H2 infusion
Aquavolta® Osmoveda H2 | Hot & cold water reverse osmosis system without tank including H2 infusion
The control panel of the Aquavolta® Osmoveda H2 – multifunctional table-top reverse osmosis system with or without installation
- Washing: Starts an intelligent cleaning process that lasts approx. 8-10 minutes during initial operation, after changing the filter or after a longer period of standstill.
- Filter chip: Shows lifespan of the 3 filters. WHITE: Everything's okay. ORANGE: 80% consumed. RED: Filter exhausted. Change necessary.
- Reset: Reset: Hold down for 3 seconds to reset the counter after changing the filter, then immediately tap the number of the replaced filter. Then press and hold RESET again.
- Purify: Indicator lights when reverse osmosis filtration is in progress. After the UV/Hydrogen tank is full, the indicator will flash indicating the filter system is backwashing. Finally it goes out.
- Fresh water: The indicator lights up when there is too little water in the storage tank. Refilling water and draining waste water required.
- No water: The UV/H2 water tank in the viewing window has too little water. Wait until filtration is complete.
- Power: Press and hold for 2 seconds to turn on or off in standby.
- Lock: Parental controls! This button must be pressed before selecting hot water.
- Small Cup: Can be pressed before selecting the type of water to limit the filling quantity to 150 ml.
- Big Cup: Can be pressed before selecting the type of water to limit the filling quantity to 300 ml.
- Normal: Selecting room temperature water
- Milk: Selection of water with a temperature of 45 - 48 degrees °C for milk powder.
- Cold: Selection of chilled water at approximately 10 degrees °C.
- Coffee: Selection of water with approx. 82 - 86 degrees °C for coffee.
- Tea: Selection of water with approx. 88 - 92 degrees °C for green tea.
- Hot: Selection of boiling hot water with with. 85-100 degrees °C.
Everyday use Aquavolta® Osmoveda H2 – Multifunctional osmosis system with cold and hot water functions
The principle of operation of the device is quite simple:
- First, the desired type of water is selected.
- Then the tapping is started by pressing the water tap button. For example, below the temperature “Normal” was selected. This means the water is at room temperature.
If you want to pour COFFEE, TEA or HOT, you can only activate these buttons if you have previously unlocked the LOCK child lock. This is done to protect against scalding.
So for this you need 3 steps. If you select NORMAL, MILK or COLD, you only need these two steps. Water will then continue to come out of the nozzle until you press the water dispenser button again to stop.
For safety reasons, the dispensing process stops automatically after 1,0 liters. The remaining supply of filtered water is then 0,3 liters.
Caution: After tapping off hot water, there may still be some hot water in the pipe. If you want to draw unheated water immediately afterwards, you should rinse the pipe with a little cold water beforehand.
Filling quantity:
You can start and stop filling with the tap button. If you do not stop, the dispensing process ends automatically after 1,0 liters. You can then start again.
However, you can also set a water quantity of 150 ml (SMALL CUP) or 300 ml (BIG CUP) after selecting the type of water before you press the tap button.
In this case too, you can start several times in a row.
UV/H2 unit
After the UV-exposed tank has filled with osmosis water, the PEM cell in it begins to produce hydrogen bubbles, some of which dissolve in the water.
The concentration of the dissolved hydrogen is shown on the numerical display on the left in PPB. This means “parts per billion”. 1234 PPB corresponds to 1,234 milligrams of H2 gas per liter of water. The so-called SATP full saturation of H2 in water is 1600 PPB. Health benefits are scientifically discussed starting at 500 PPB.
The water temperature
The brewing water function can be adjusted between 85 degrees °C and 100 degrees °C. Press and hold HOT for 3 seconds.
The currently set temperature for HOT (here 90 degrees °C) then appears on the number pad.
You can increase this temperature by 1 degree by pressing the BIG CUP button and decrease it by XNUMX degree by pressing the SMALL CUP button.
If you do not press the buttons for more than 5 seconds, the last displayed value is automatically saved. The target temperature displayed is usually only reached approximately and not immediately.
The water cooling function is displayed at 100 degrees °C. However, since the cooling element works with constant power, the effective water temperature may vary slightly depending on the room temperature.
Because H2 gas dissolves much better in cold water than in warm water, the COLD function is a very important feature of the device.
